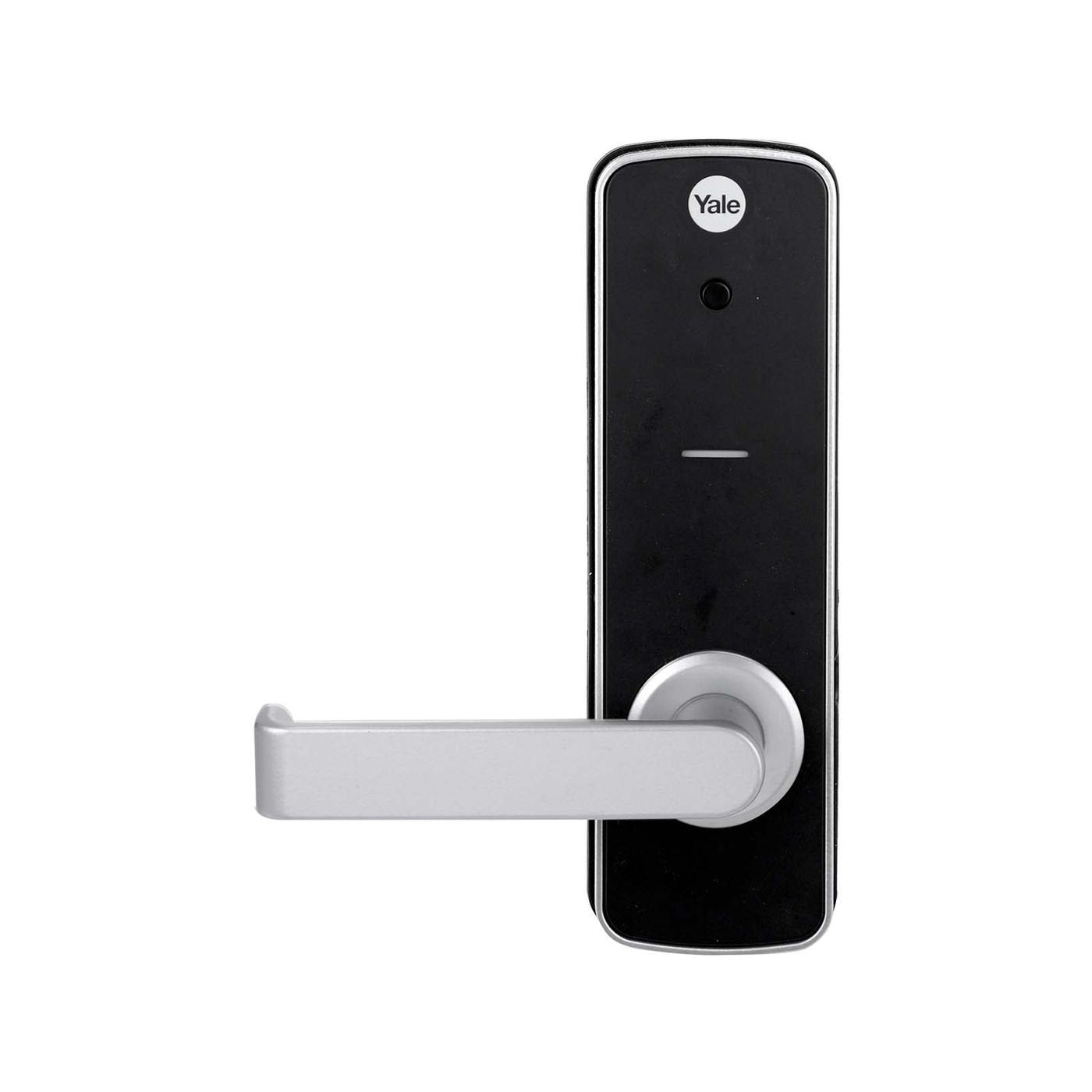

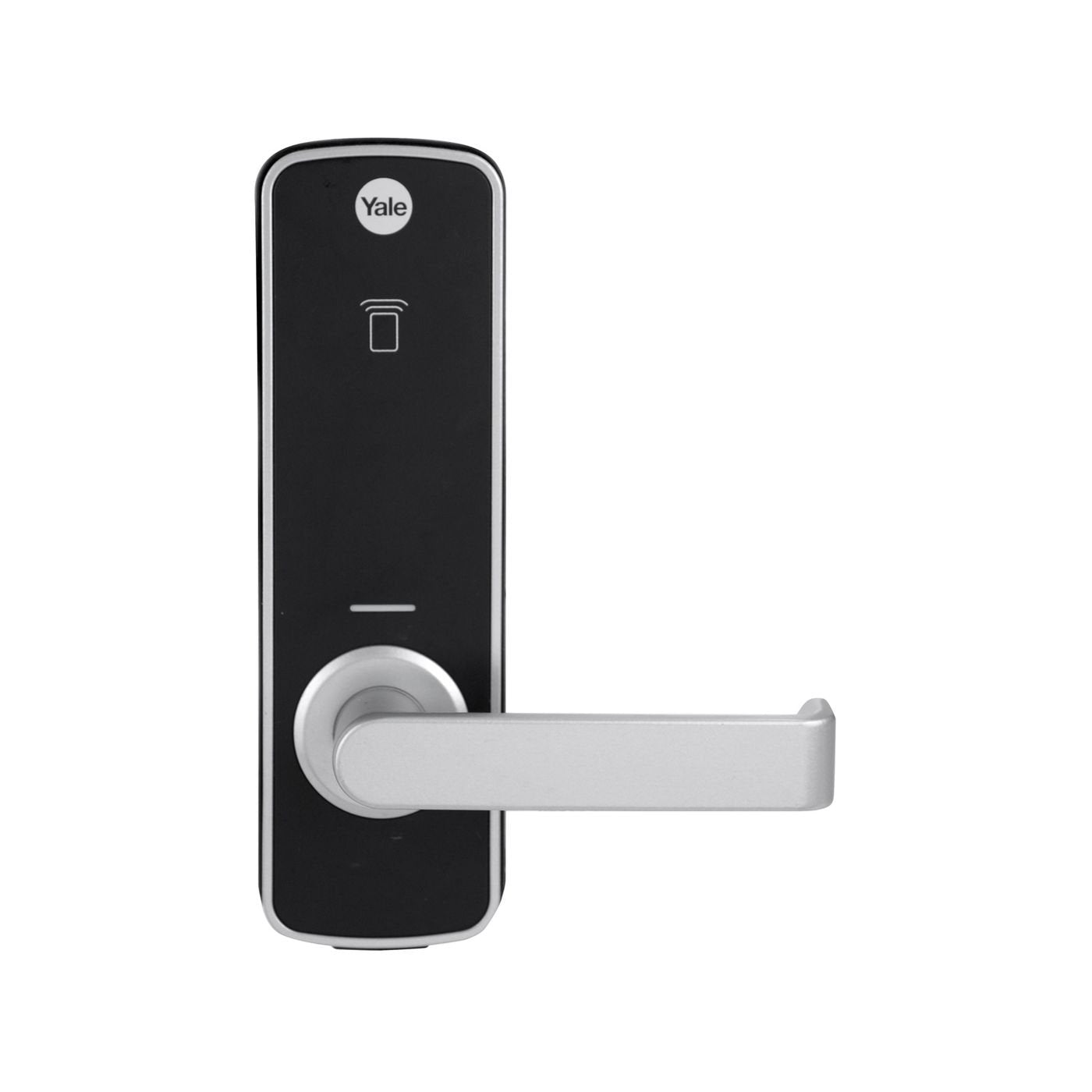

Yale Unity Entrance Smart Lock Fire Rated with DDA Lever
Yale Unity Entrance Smart Lock Fire Rated with DDA Lever is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
PRODUCT STORY
PRODUCT STORY
Simple, Small & Smart…..
- 6 unlocking options: Wi-Fi app access, Bluetooth app access, fingerprint unlock, PIN code, RFID Card and mechanical key unlock
- The AUSLOCK app provides users with easy door lock management, allowing them to manage their smart fingerprint door lock system at any time and any location (Gateway Bridge is required)
- Users can manage any number of Smart locks with their smart device
- Straightforward fingerprint door handle settings, allowing users to fulfil their needs when certain access situations arise
- Multi-level administrator settings that help users gain better control over the Smart door lock system installed in their smart building
- View unlock records anytime and anywhere to stay up to date with your home security
- The compact size of the H11 smart door lock makes it simple to install into wooden doors.
- The included FPC fingerprint lock reader provides users with an exceptional level of security
- Emergency power supply for when power outages occur
- Up to 10,000 unlock/lock uses
- Anti-peep touchscreen
- Mechanical key
- Micro-USB for emergency power
- IP rating 55
- Auto-locking
- Passage mode
FREE SHIPPING
FREE SHIPPING
- Australia wide FREE standard shipping
- Same day or next day dispatch
- Delivered in 3-7 business days (Standard Shipping)
- Delivered in 1-3 business days (Express Shipping)
DESIGNED FOR THE AUSTRALIAN MARKET
DESIGNED FOR THE AUSTRALIAN MARKET
- Australian owned and operated
- Designed for the Australian homes and businesses
- Ships from Australia
- Click & collect available from our local store
OUR GUARANTEE
OUR GUARANTEE
100% NO-FUSS GUARANTEE
If you have any issue, contact our support team for quick solution or return easily with no-fuss. Secure ordering system with fast delivery.
Yale Unity Entrance Smart Lock Fire Rated with DDA Lever
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Access in different ways
-
Pwd Unlock
-
Card Unlock
-
App Unlock
-
Wi-Fi*
Yale Unity Entrance Lock Fire Rated with Accessible Compliant Lever
Yale Unity Entrance Lock Fire Rated with Accessible Compliant Lever combines smart access, fire-rated compliance, and accessible design in one premium entrance lock. Designed for projects where safety, convenience, and ease of use matter, it features integrated hardware to suit fire door applications and a lever certified to AS1428.1-2009 Design for Access and Mobility.
With the Yale Home App, users can lock and unlock the door, share access, and track activity from their smartphone. The lock also supports contactless key tags and optional PIN code access with the Yale Smart Keypad. Features such as auto unlock, door position sensing, and LED lock alerts add everyday convenience, while compatibility with the Yale Connect Plus Hub 2 allows expanded remote access and smart home integration.
Features
-
Total Control via App
Use the Yale Home App to lock and unlock your door, grant access to others, and keep track of visitor activity from your mobile device.
-

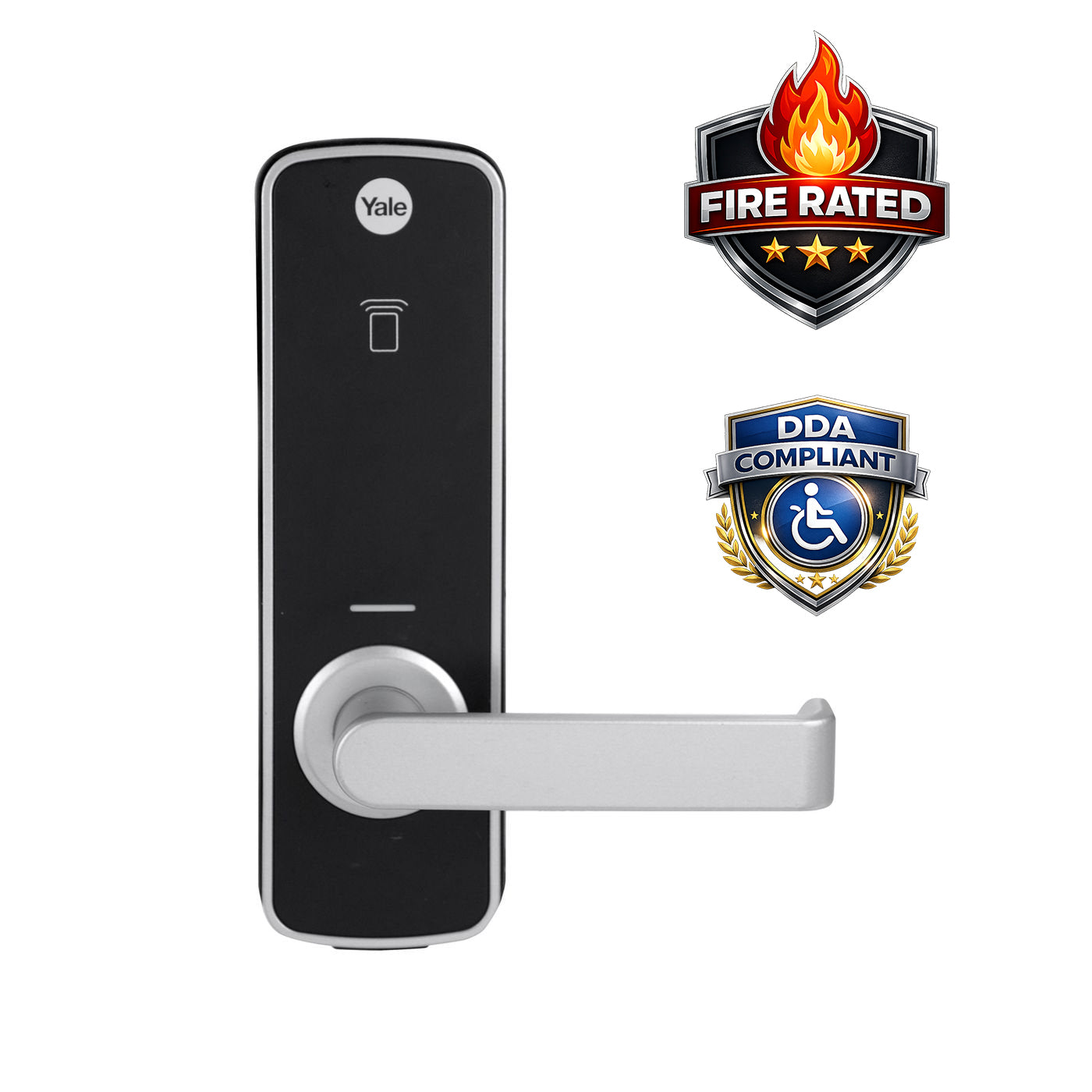

Fire Rated
Successfully tested for up to 2 hours on fire door assemblies in accordance with AS1905.1-2015 Fire Resistant Doorsets.
-
AS1428.1 Compliant
Lever designed to meet AS1428.1-2009 Design for Access and Mobility, helping provide easier and more accessible everyday use.
-
Key Free
Enjoy a 100% key-free design with no cylinder, helping eliminate lost keys, copied keys, and the hassle of carrying traditional keys.
-
Tailor User Access
Create flexible access for family, guests, staff, or residents using the Yale Home App, contactless key tags, or optional Yale Smart Keypad.
-
Auto Unlock
Unlock your door automatically as you approach, without needing to take out your phone. The built-in door position sensor also lets you know whether the door is open or closed.
Yale Connect Plus Hub 2
The Yale Connect Plus Hub 2 helps unlock the full remote functionality of your Yale smart lock system. Once set up, it connects your compatible Yale devices to your home Wi-Fi, allowing you to manage access, monitor activity, and control your lock more conveniently from wherever you are.
This video will guide you through the setup process, including powering on the hub, connecting it to your home network, linking it with your Yale devices, and getting everything ready for smoother smart home control.

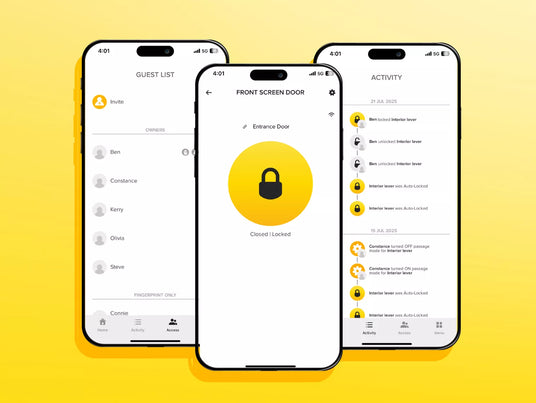

Yale Home App
Take control of your lock with the Yale Home App, designed to make everyday access smarter, simpler, and more secure. Using your mobile device, you can lock and unlock your door, grant access to family, guests, or staff, and track visitor activity from anywhere with greater convenience and confidence.
Whether you are managing your own home, a rental property, or shared access, the Yale Home App gives you flexible control in one easy-to-use platform.

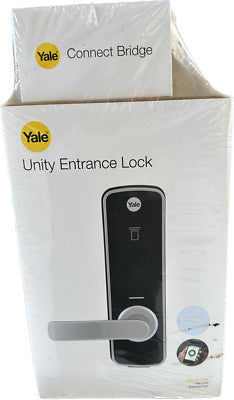

What’s Included in the Box
The Yale Unity Entrance Lock Fire Rated with Accessible Compliant Lever comes as a ready-to-install smart lock solution, with the required fire-rated hardware already integrated into the escutcheons, so there is no need for an additional fire kit or extra door preparation changes. The package also includes 2 x contactless key tags for convenient everyday access. Optional accessories such as the Yale Connect Plus Hub 2, and Yale Smart Keypad are sold separately.
Technical Specs
Model: Yale Unity Entrance Lock Fire Rated with Accessible Compliant Lever
Part number: YUR/DEL/FR/DDA/SIL
Door thickness: 35–60mm
Backset: 60mm standard, 70mm latch sold separately
Lock type: 530 latch
Finish: Silver powdercoat with black nylon
RFID: Yes, includes 2 contactless key tags
Power: 4 x AA alkaline batteries
Battery life: Approximately 12 months
Low battery warning: 20%
IP rating: IP54
Fire rated: YES
Operating temperature: -25 to 70°C
Humidity: 0–95%
Certifications: AS4145.2:2008 SL8 and D8, BAL-40, AS1905.1:2015, AS1428.1-2009, RCM
Installation Video
With a simplistic, modern and secure design, the Yale Unity Digital Entrance Lock opens the door to a new range of digital opportunities.

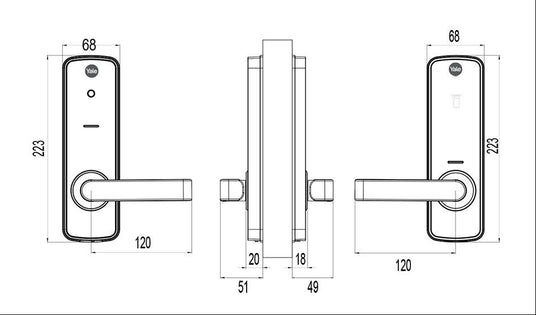

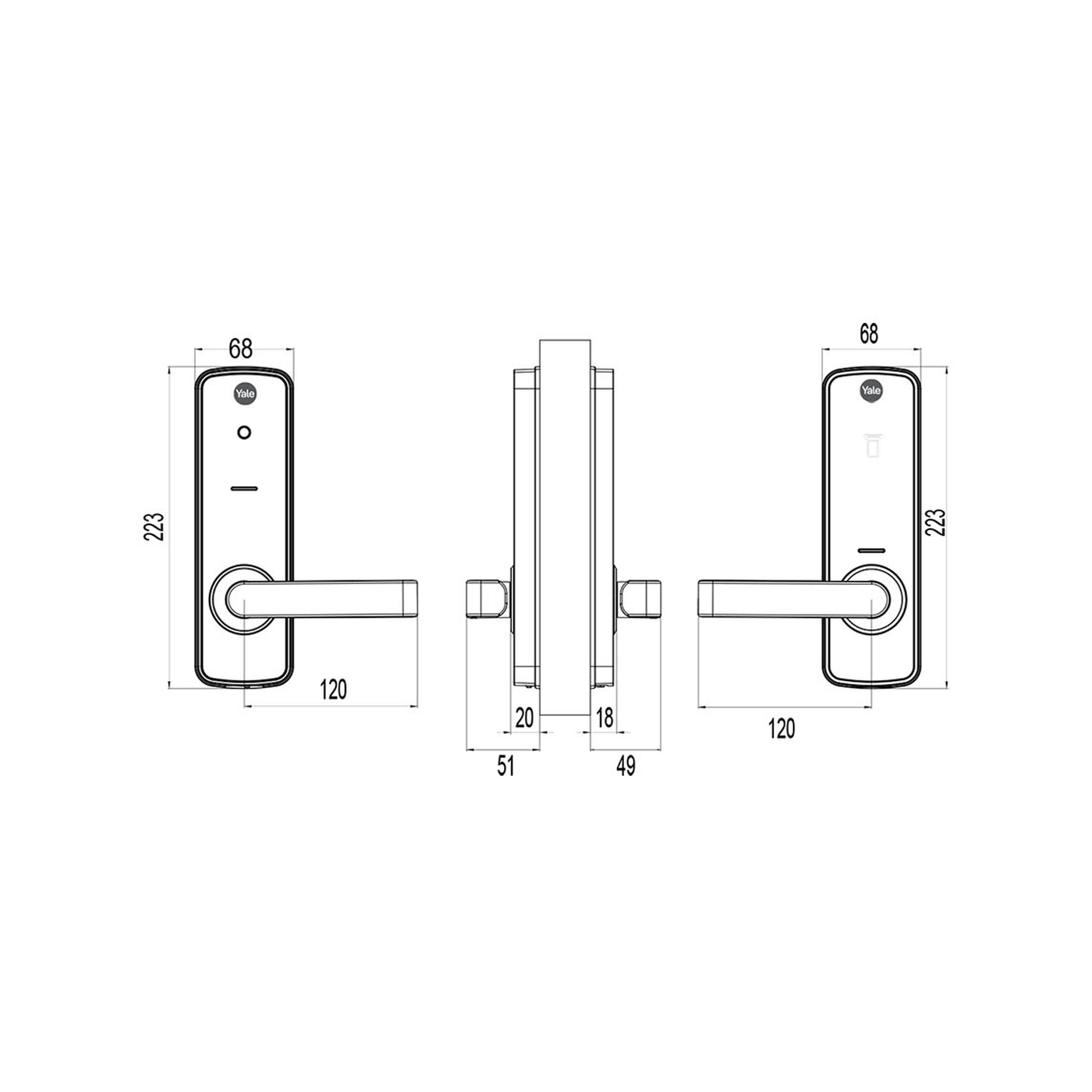

Unity Entrace Size
The Yale Unity Entrance Lock Fire Rated with Accessible Compliant Lever features a slim and practical design, making it suitable for a wide range of residential, multi-residential, and light commercial door applications. Based on the dimensions shown, the lock body measures approximately 223mm in height and 68mm in width, with an approximate 120mm lever length. Please review the measurements shown to help confirm compatibility with your existing door, hardware, and installation requirements.
Where can I use this lock?
-
Airbnb, CoLiving & Rental Properties
Secure short-term rentals with keyless access.
-
Residential Home
Enhance security in residential homes with convenient smart access.
-
Commercial Buildings
Elevate security measures in commercial buildings with hassle-free keyless access.
-
Work Spaces
Enhance security in workspaces with effortless and keyless access.
-
Health Care, Restaurants & Other Businesses
Reinforce security in healthcare, restaurants, and other businesses with seamless access.
-
Any Other Properties
Empower security in diverse properties with convenient, remote and smart access.
FAQs
Can I Change My Smart Lock’s Master Password?
Can I Change My Smart Lock’s Master Password?
Your initial master’s password will be ‘0000’, and you can change it as per the user manual.
Is it possible to open the door lock if the battery runs out?
Is it possible to open the door lock if the battery runs out?
Yes, you can open the door lock in two ways – you can charge up the door lock using a power bank with android cable. Then, you can use your card, fingerprint or password to open the door. Another way is to use the manual override key provided.
Do I get any spare keys and cards?
Do I get any spare keys and cards?
Yes, you will get 2-3 manual override keys depending on the model and 3 RFID cards.
Does the cost include installation?
Does the cost include installation?
No, a separate charge shall apply for installation service that you can book through Aus Smart Locks or one of our approved dealers.
Does your digital door lock come with warranty?
Does your digital door lock come with warranty?
Yes, 1 year of Warranty. Learn more on warranty
Are Smart locks weatherproof / waterproof?
Are Smart locks weatherproof / waterproof?
Yes, you can open the door lock in two ways – you can charge up the door lock using a power bank with android cable. Then, you can use your card, fingerprint or password to open the door. Another way is to use the manual override key provided.
