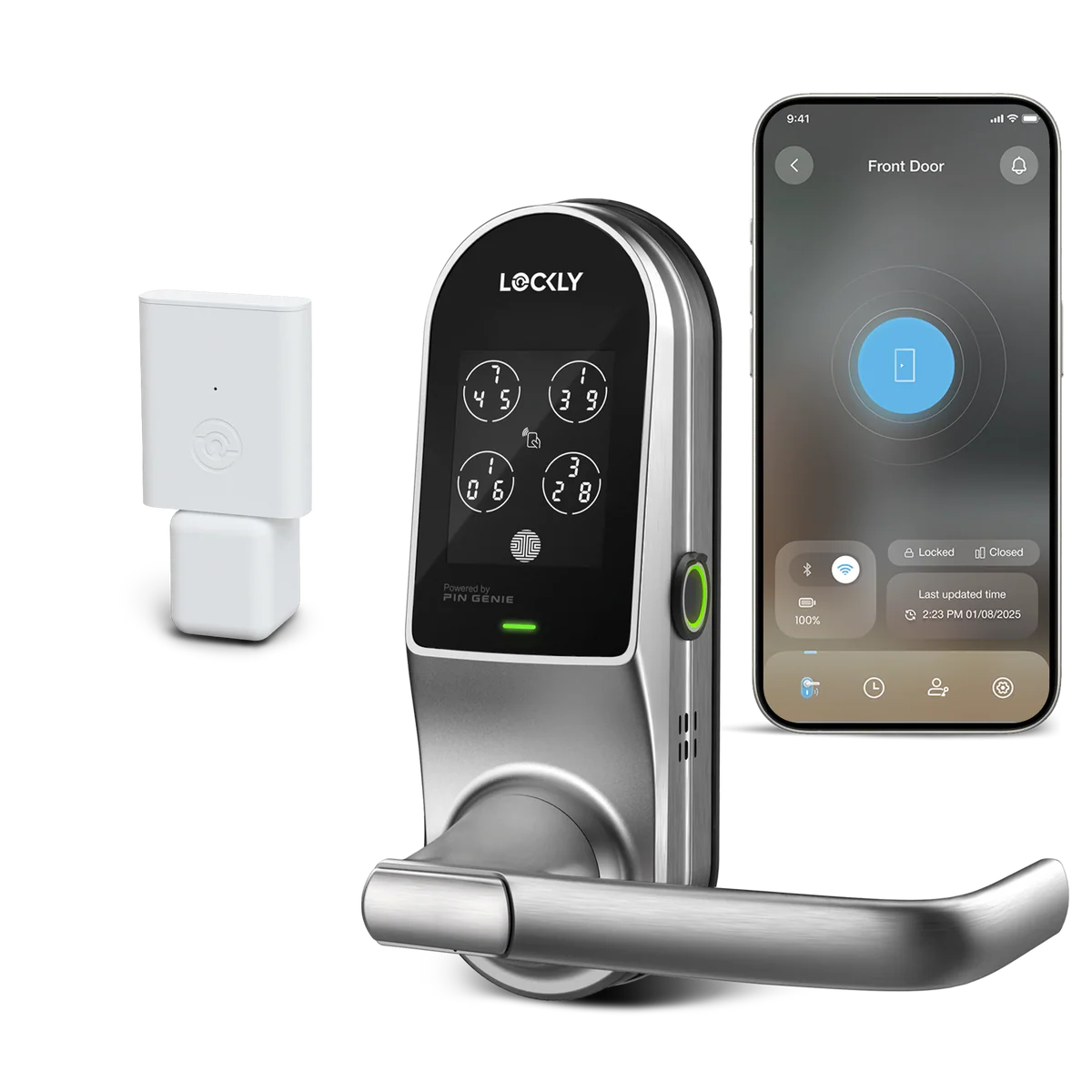

Lockly Guard Duo — UL Fire-Rated Interconnected Smart Lock

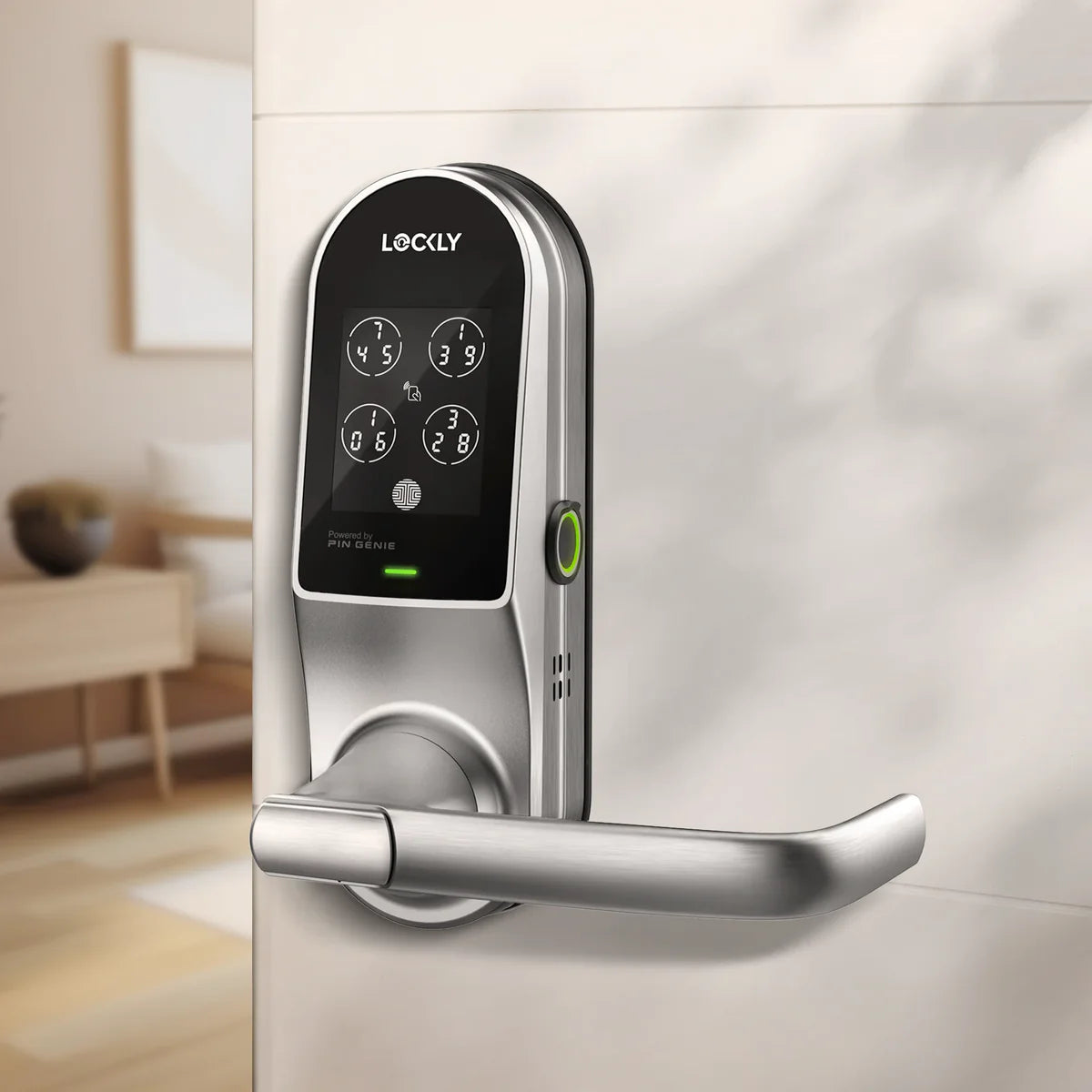

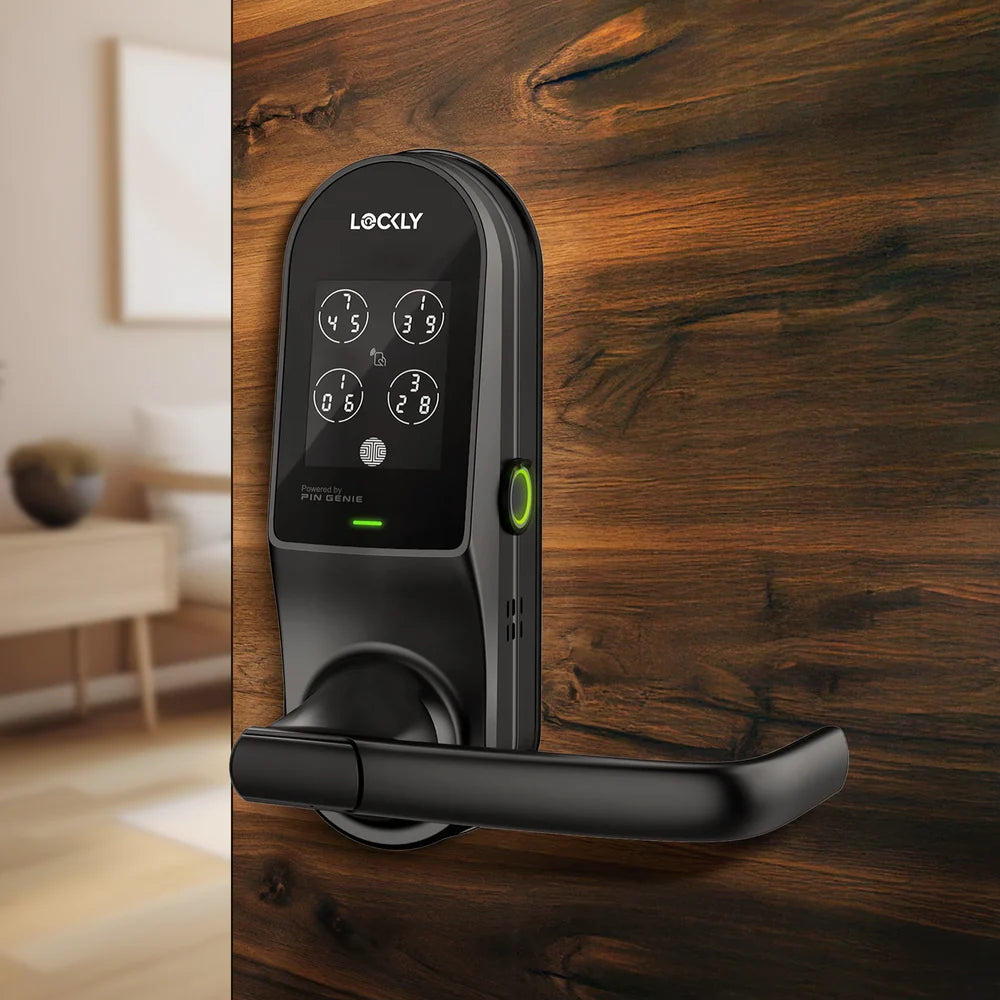

The Lockly Guard Duo is the only smart lock in its class with UL
fire-rated certification — making it the go-to choice for
fire-rated doors in apartments, commercial properties, and
buildings requiring compliance. A single lever motion unlocks
both the latch and deadbolt simultaneously for fast egress.

Built to ADA guidelines. Wi-Fi Hub included.
RFID card access included. Wired door sensor included.

HOW YOU CAN UNLOCK

✔ Fingerprint — 3D biometric sensor, 0.3 seconds, up to 99 prints
✔ MIFARE® RFID card or fob — up to 99 cards
✔ PIN Genie® keypad — hack-proof shuffling touchpad, up to 49 codes
✔ Smartphone app — remote lock/unlock via Lockly Home app
✔ Voice control — Siri, Alexa & Google Assistant (with Wi-Fi Hub)
✔ Scan-to-Open — guest QR access, no app download needed
✔ Physical key — 2 backup keys with re-keyable 5-pin cylinder
✔ 9V backup — emergency access if battery runs low

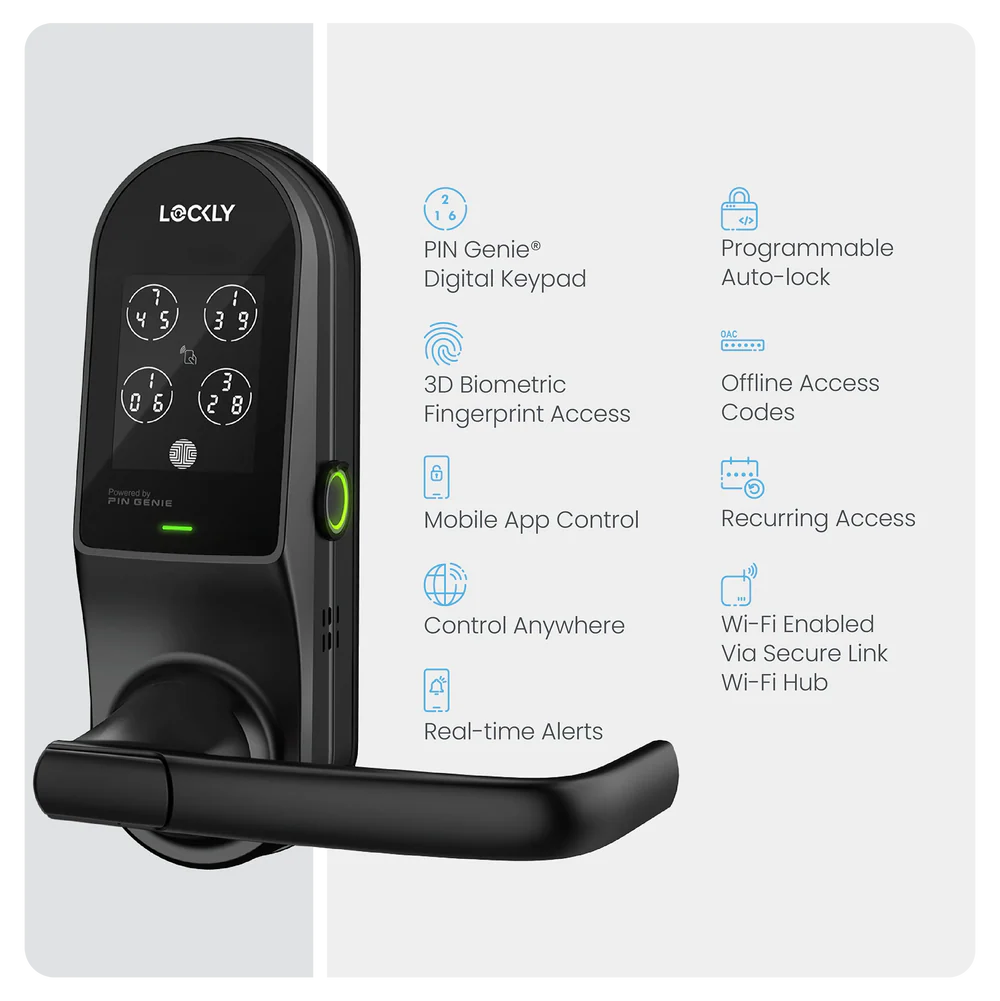

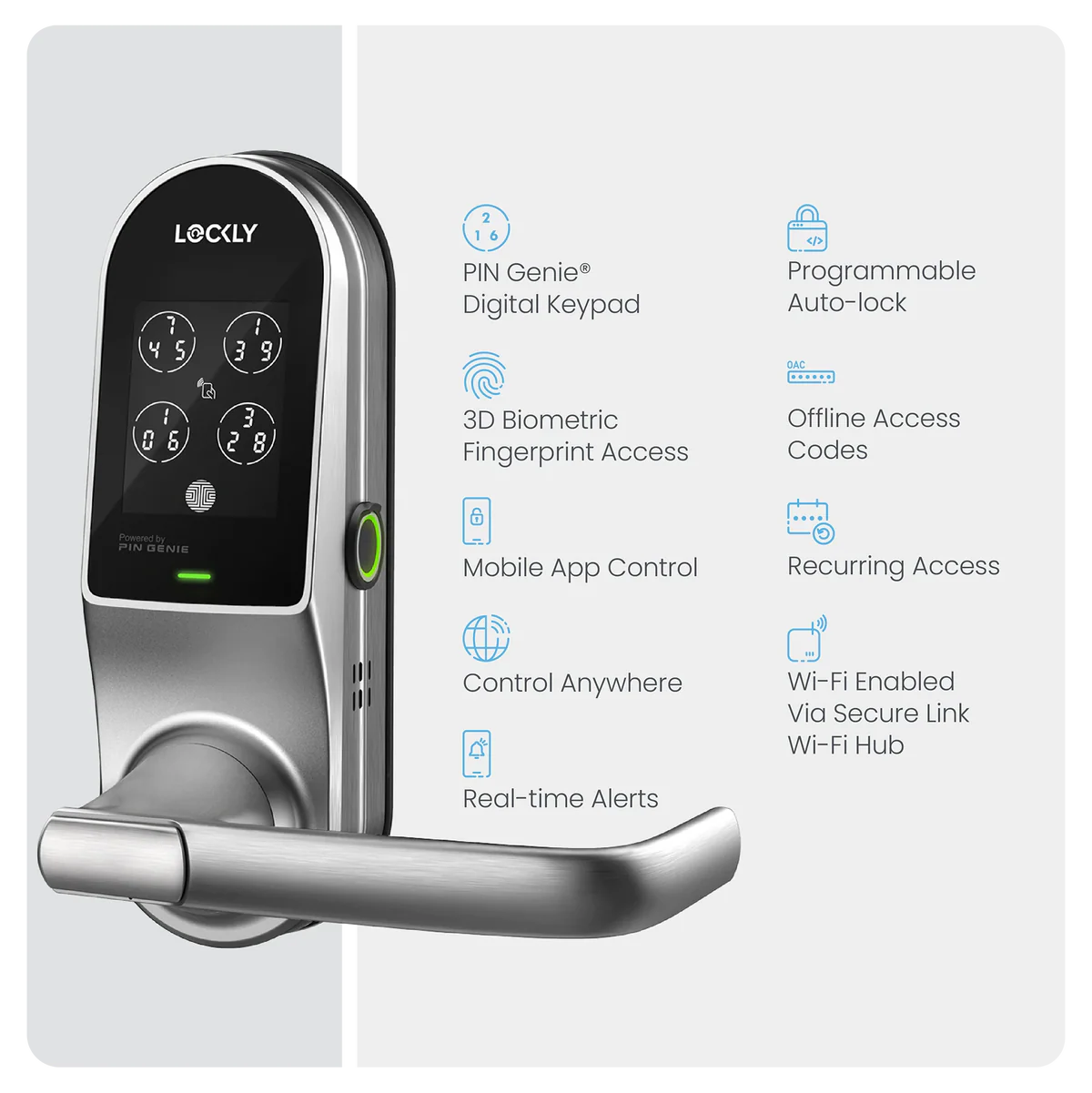

KEY FEATURES

✔ UL fire-rated — certified to ETL UL 10C, 10B, NFPA 252, CAN/ULC S104

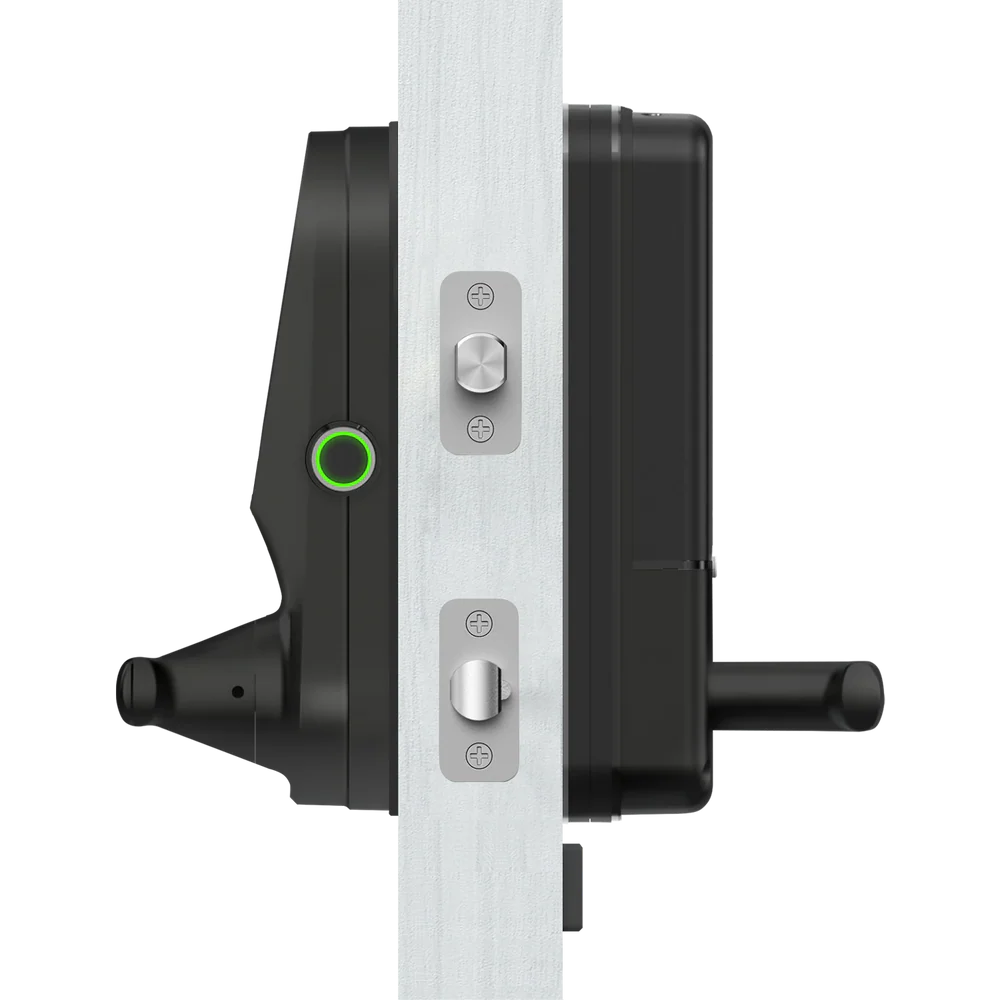

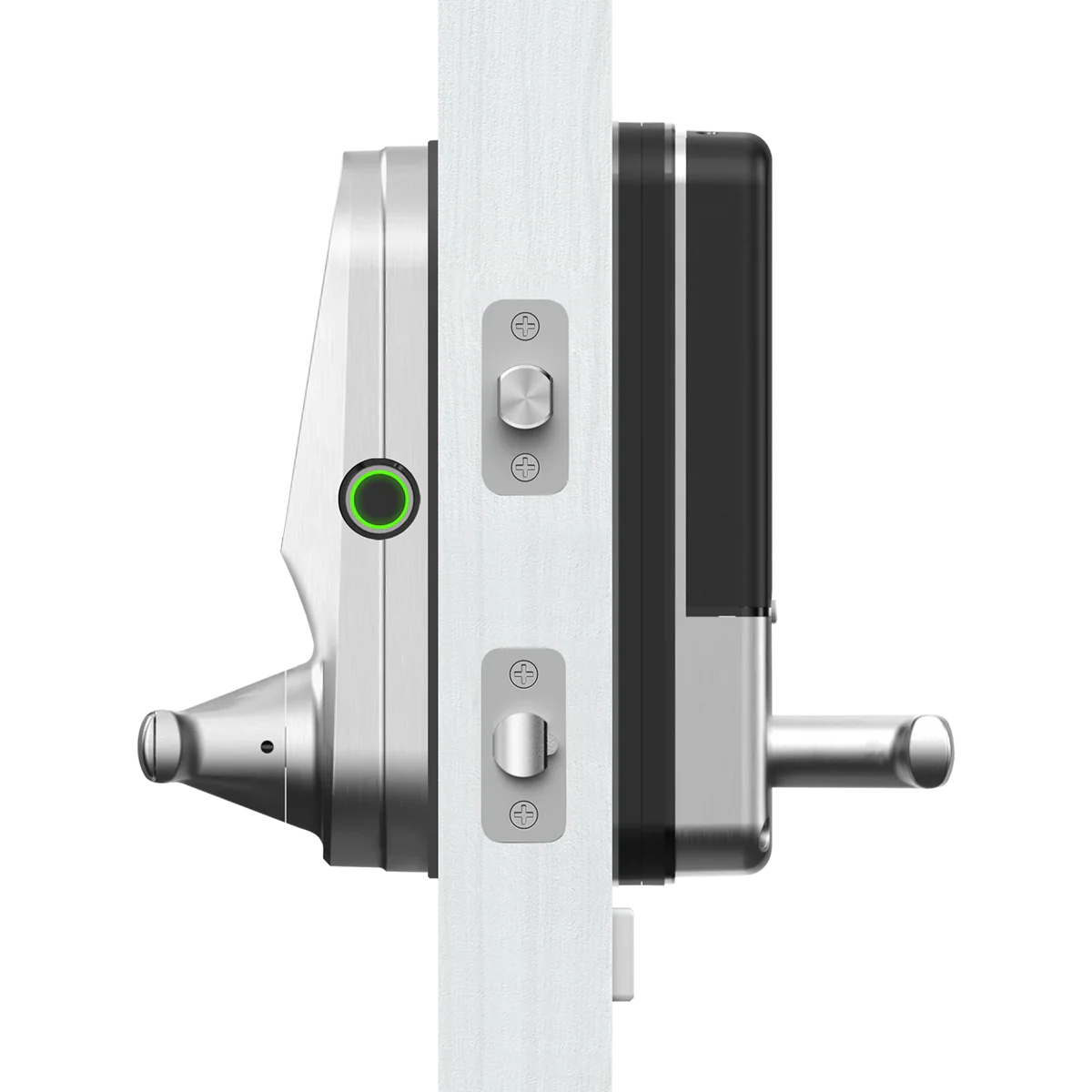

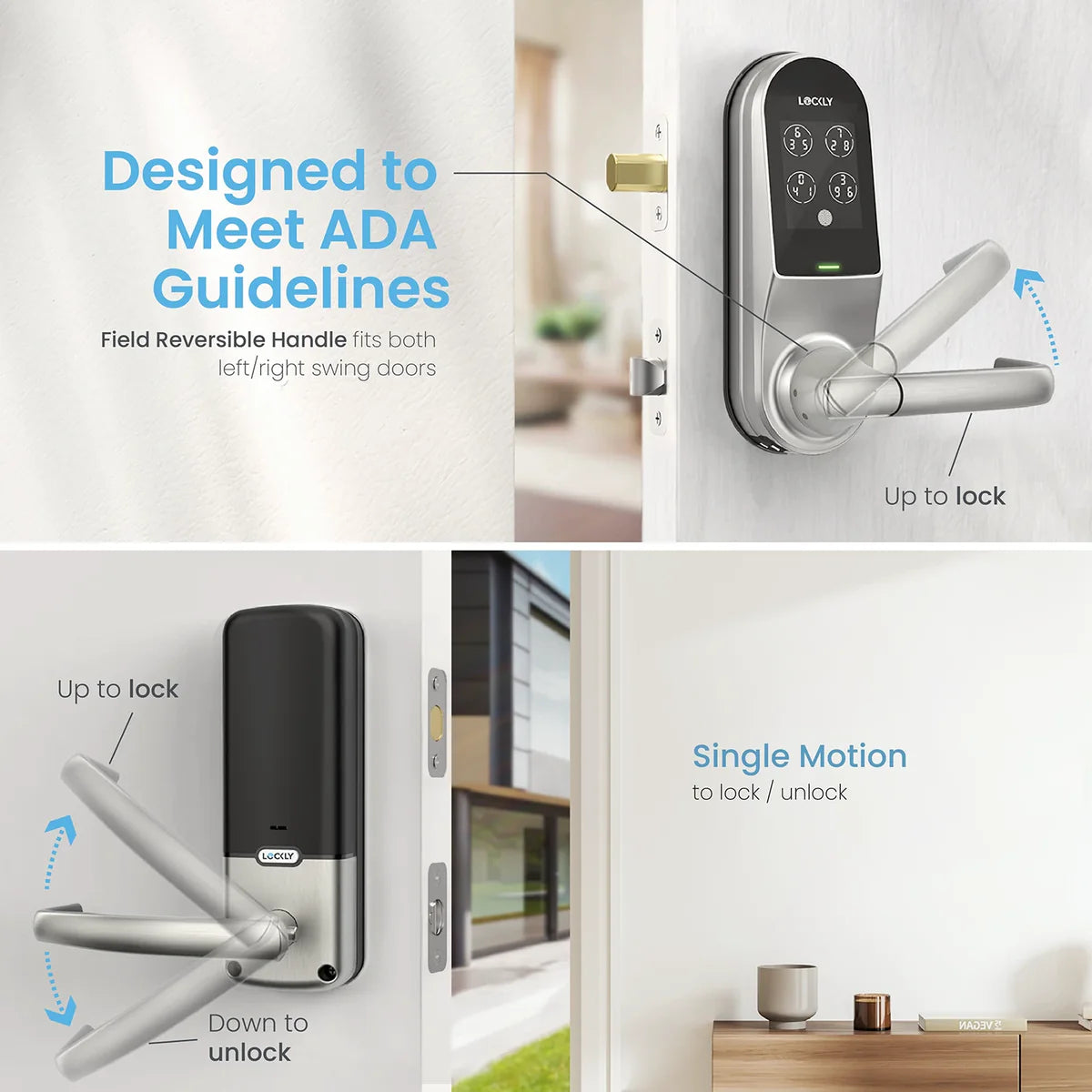

✔ Interconnected latch + deadbolt — single-motion egress unlocking

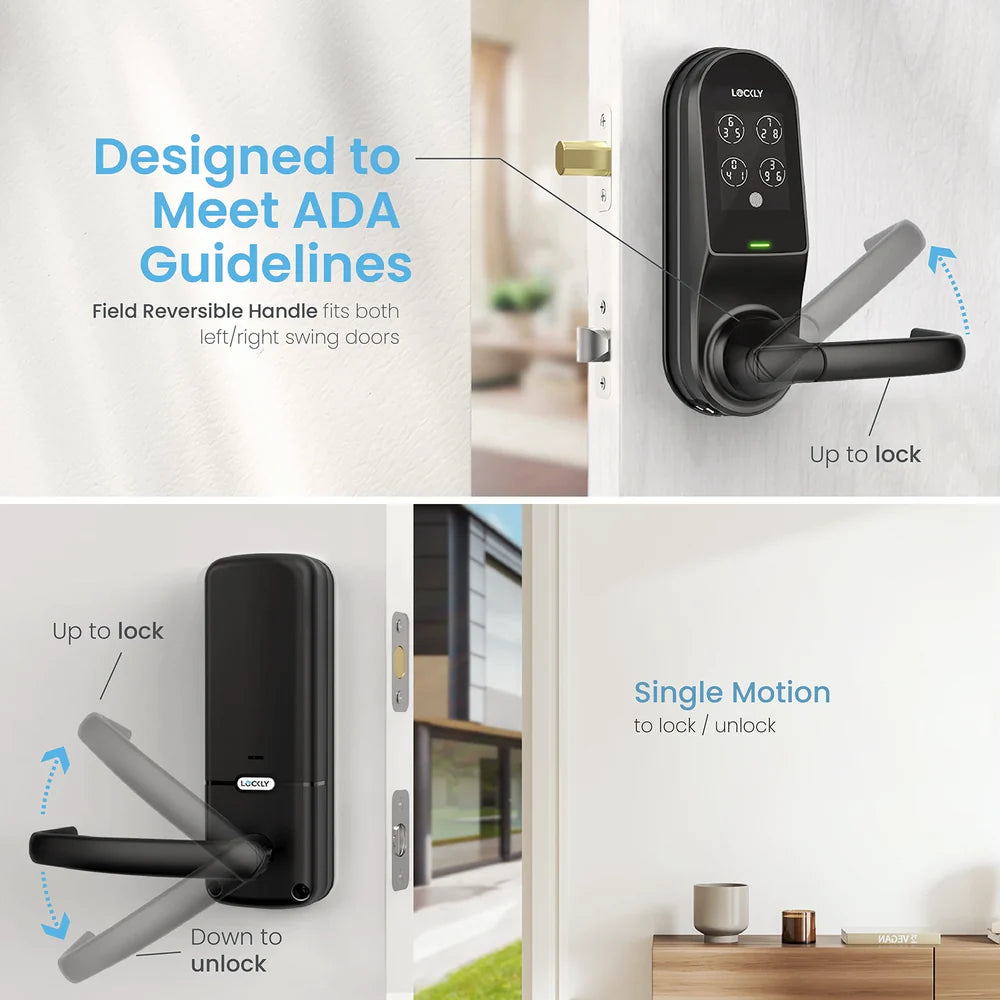

✔ ADA-compliant lever handle — reversible for left/right doors
✔ Wi-Fi Hub included — remote control from anywhere
✔ Wired door sensor included
✔ Matter-compatible — Apple Home, Alexa, Google Home, SmartThings
✔ RFID card access — up to 99 MIFARE® cards
✔ Access logs — up to 90 days via Lockly Home app
✔ eKeys & eBadges — share or revoke access remotely
✔ Offline Access Codes — works without internet
✔ Auto-lock — programs to lock after set time
✔ Air Transfer — copy user profiles to other Lockly locks
✔ IP54 weather rated
✔ ANSI BHMA Grade 3 + ADA certified
✔ 3-year mechanical warranty + 2-year electronics + lifetime tech support

IDEAL FOR

✔ Fire-rated apartment entry doors
✔ Commercial & strata properties
✔ Aged care & disability accessible housing
✔ Any door requiring ADA compliance

SPECIFICATIONS

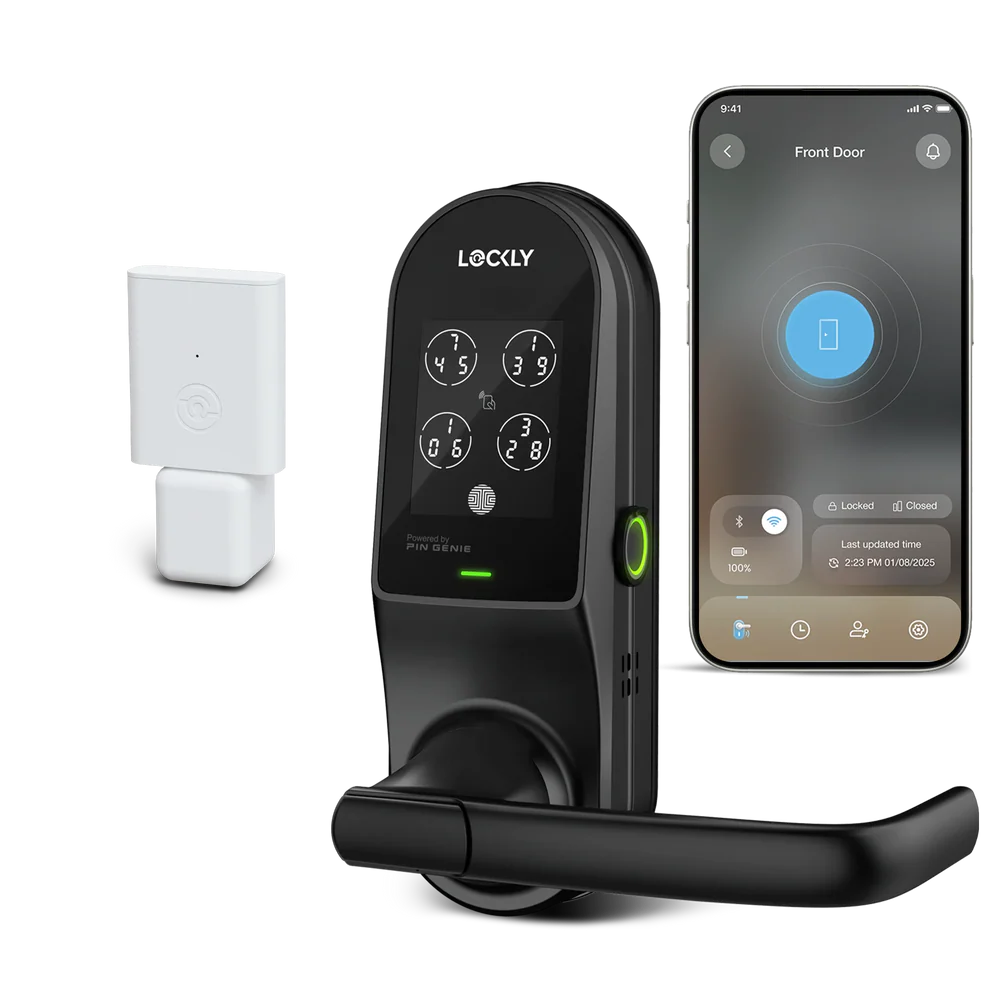

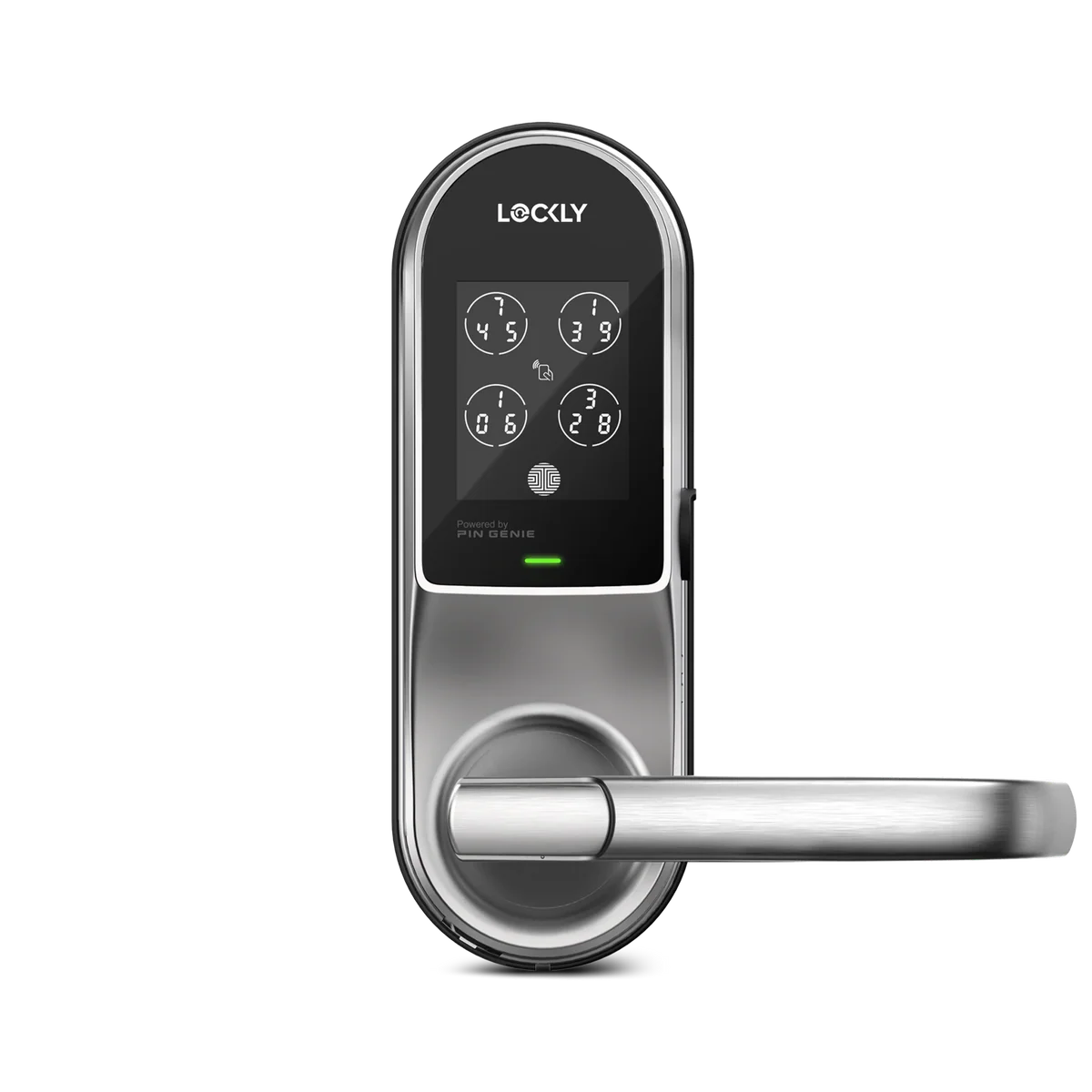

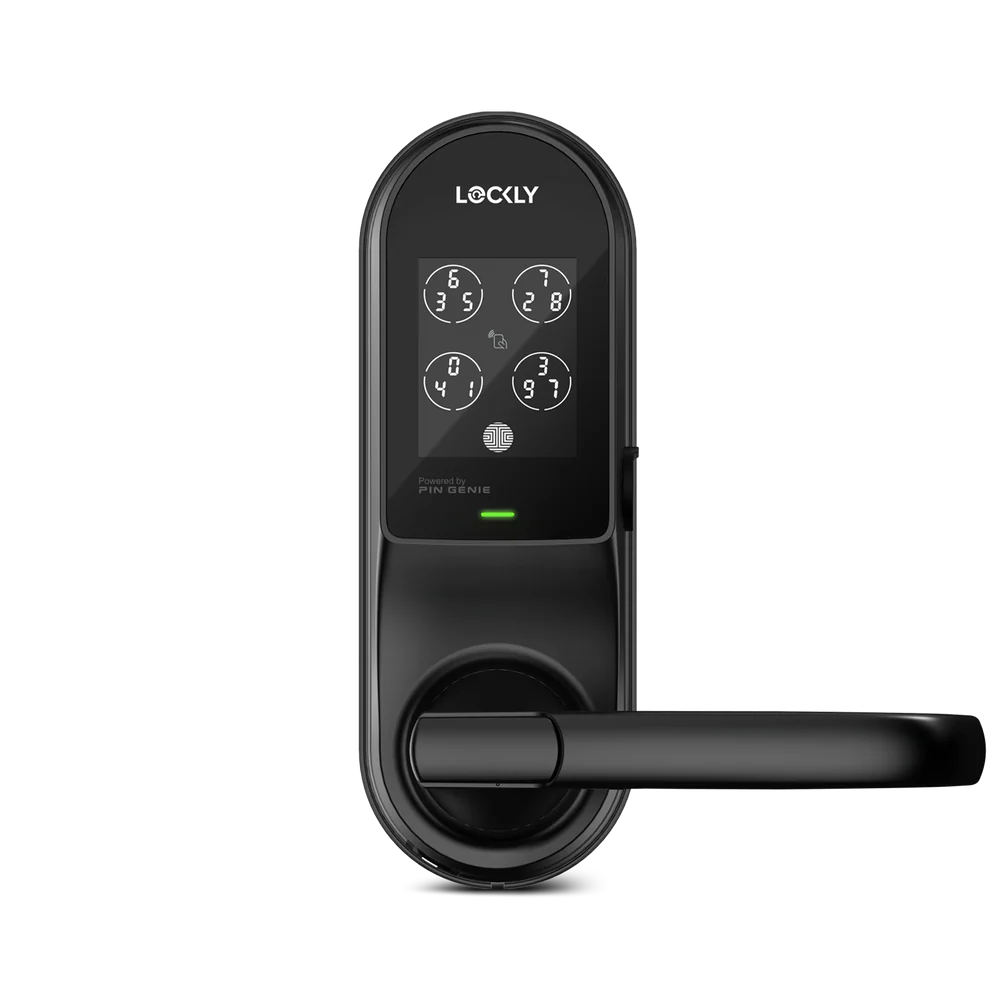

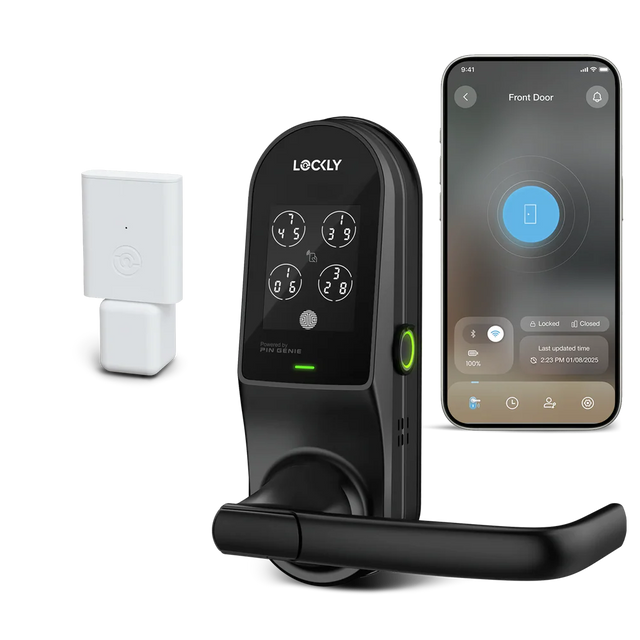

- Finish: Matte Black / Satin Nickel
- Fingerprints: Up to 99
- RFID Cards: Up to 99 (MIFARE®)
- Access Codes: Up to 49 (PIN Genie keypad)
- Battery: 4 x AA (up to 10 months) + 9V backup
- Connectivity: Wi-Fi 2.4GHz via included hub + Bluetooth
- Smart Home: Apple Home (Siri), Alexa, Google Home, Samsung SmartThings

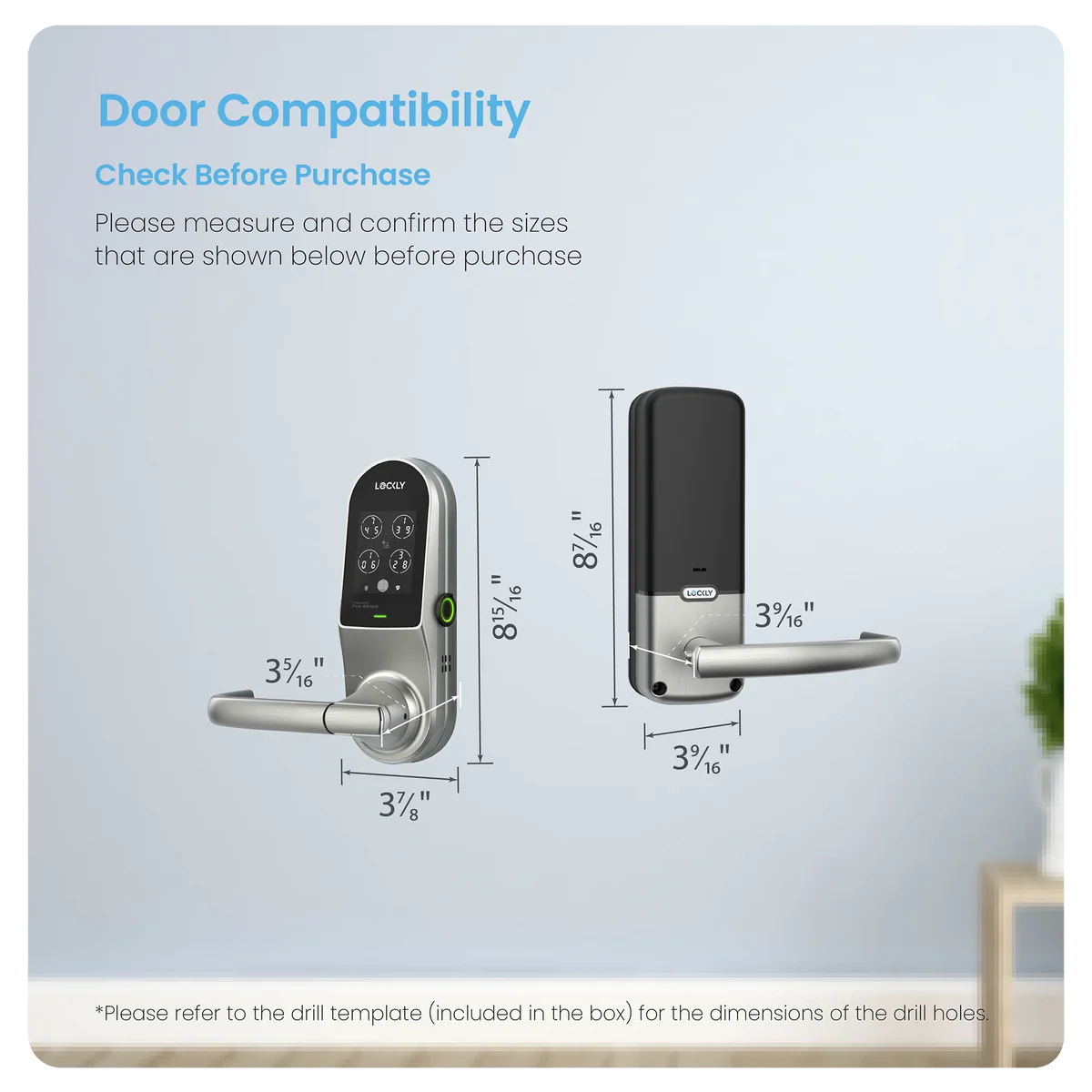

- Door Thickness: 35mm – 50mm
- Backset: 60mm or 70mm (adjustable)
- Cross-bore: 54mm / Center-to-center: 102mm or 140mm (adjustable)
- Country of Origin: USA

WHAT'S IN THE BOX

Guard Duo Smart Lock, Deadbolt & Latch Assembly, Dual-Locking Gear,
2x Physical Keys, Secure Link Wi-Fi Hub, Wired Door Sensor,
4x AA Batteries, Cover Plates (4in & 5.5in), Strike Plate,
Mounting Plate, Activation Card, Installation Manual, User Manual

PROFESSIONAL INSTALLATION AVAILABLE AUSTRALIA WIDE

Fire-rated door installations require precision — we strongly recommend
professional fitting. Our certified technicians install Australia wide
from just $149. Add installation at checkout or contact us to book.
